CompleteData Centres11kV
Data centre interconnect, East-West Link
Sydney region, NSW
The whole HV scope, delivered inside a data centre that never went down.
Nebula delivered the full HV scope for a data centre interconnect: switchgear supplied, installed and commissioned, MV cable and fibre hauled and terminated, protection proven.
None of it happened on an empty site. In a live facility the work is shaped by what the environment will permit: where plant can be laid down, when an isolation can be taken, how long the window lasts and who signs it off. Sequencing is negotiated rather than planned once and executed.
The self-performing model shows up in two specific places on this scope. The plinths and custom CT drop boxes were manufactured in-house rather than ordered in, which is what turns a dimensional problem found on site into a workshop task instead of a procurement delay against a booked isolation. And the crew that installed the switchgear commissioned the protection on it, so the arc flash and line differential settings were proven by people who knew how the assembly had been built and terminated.
What the scope covered
- 11kV Premset switchgear assembly, supplied and installed
- Equipment upgrades to customer-supplied switchboards
- Switchboard plinths and custom CT drop boxes, manufactured in-house
- MV cable and fibre haul, installation and termination
- Arc flash and line differential protection commissioned
Supplied, made, installed and proven in-house.
Delivery of the full HV scope within a live, operational data centre environment.
Equipment

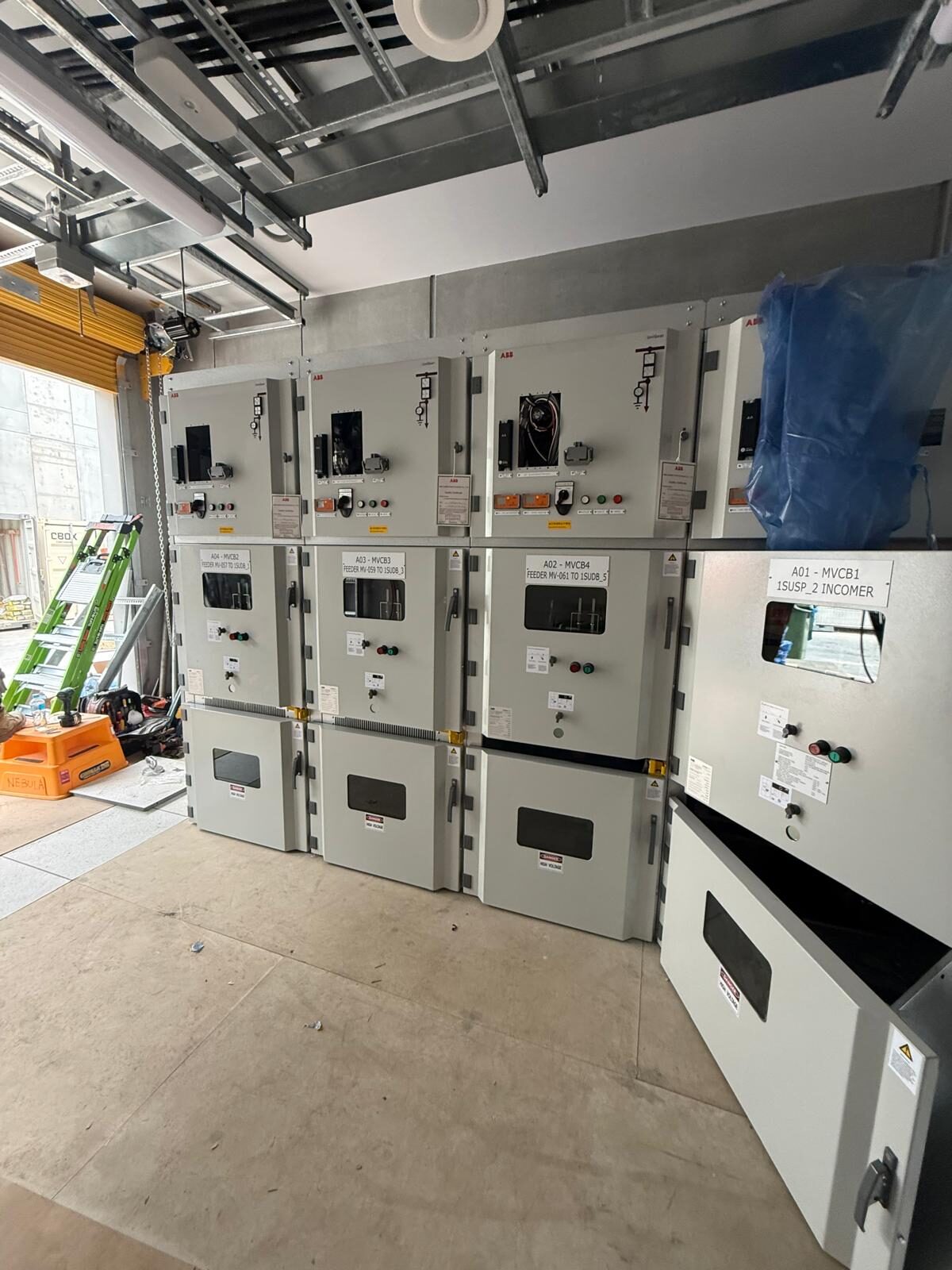

Supply, installation and commissioning of an 11kV Premset switchgear assembly, plus equipment upgrades for customer-supplied switchboards.
Manufacturing
In-house manufacture of switchboard plinths and custom CT drop boxes.
Infrastructure

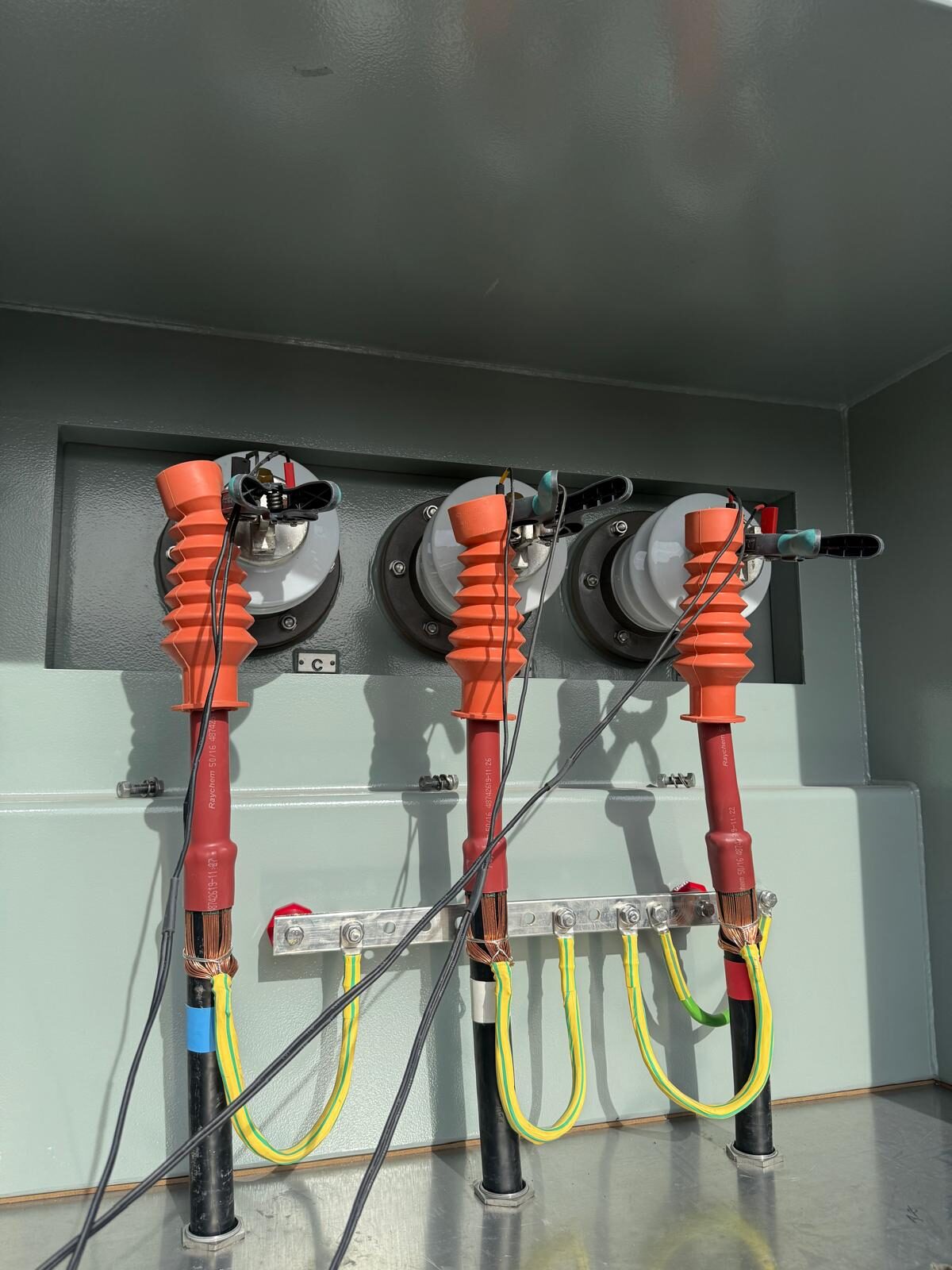

Direct delivery of MV cable and fibre haul, installation and termination.
Protection

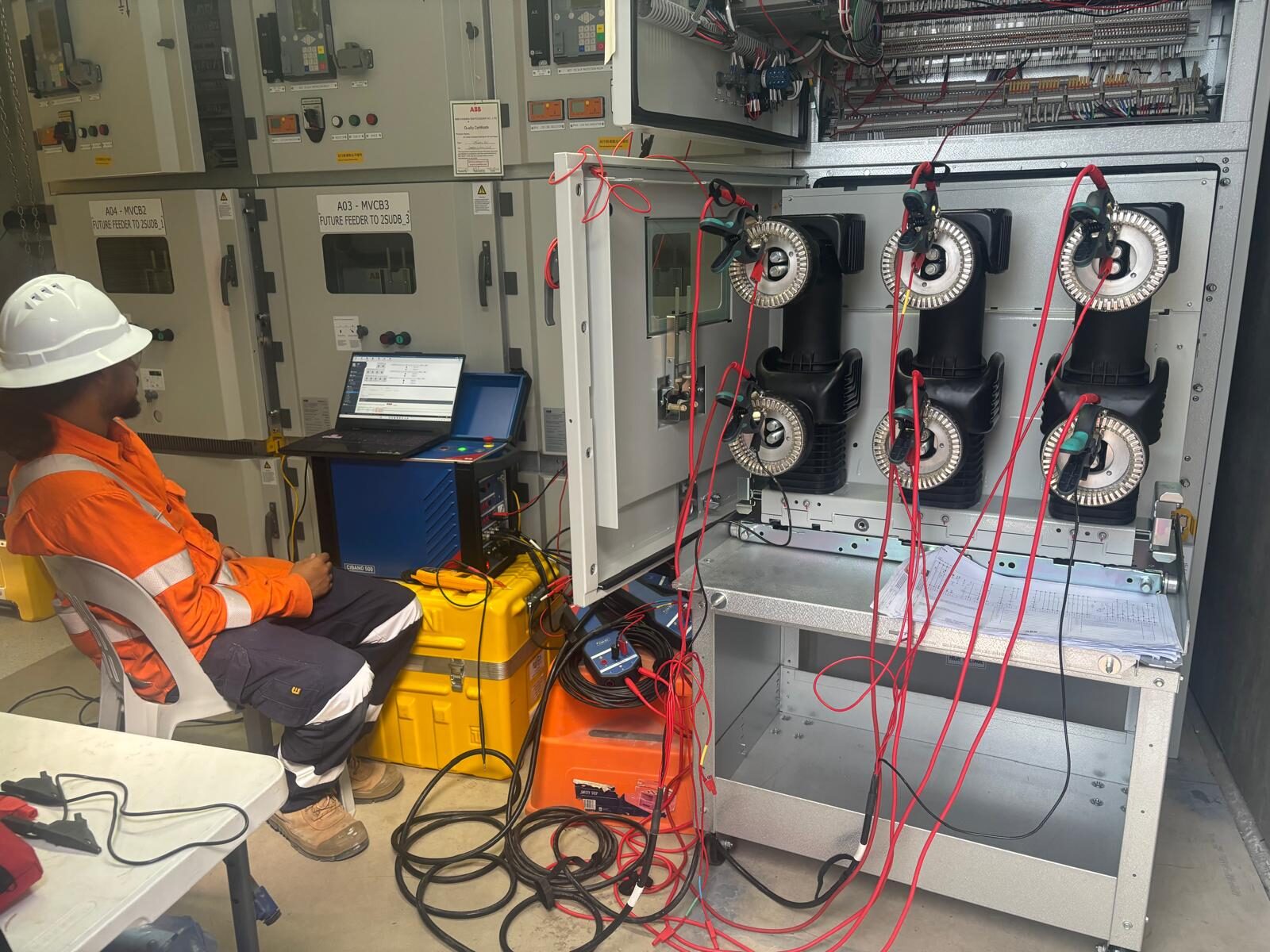

Commissioning of arc flash protection and line differential relays, with transformer testing and VLF high potential cable testing.
- Switchboard plinths and custom CT drop boxes manufactured in-house
- MV cable and fibre haul, installation and termination
- 11kV Premset switchgear assembly supplied and installed
- Equipment upgrades to customer-supplied switchboards
- Transformer and VLF high potential cable testing
- Arc flash protection and line differential relays commissioned
Every Nebula scope is delivered with structured test scripts, hold point sign-off and a full documentation package. Set against the testing performed on this project, that is the pack below.
- Structured test scriptsStandard on every scope
- Hold point sign-offStandard on every scope
- Full documentation packageStandard on every scope
- Isolation and switching recordsPer window
- VLF high potential cable test resultsPer circuit
- Transformer test resultsPer unit
- Arc flash and line differential settings recordsPer relay
